Pneumatic Dual Label Heat Press with Laser

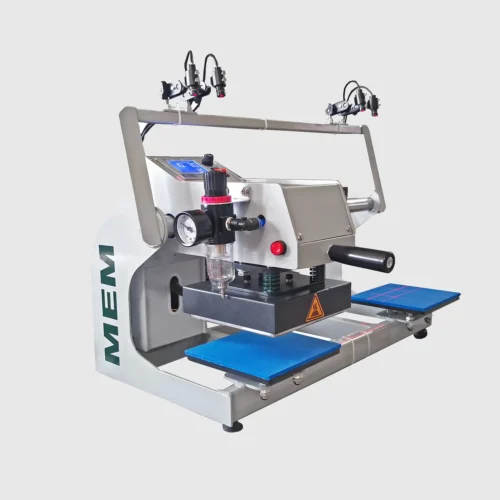

MEM TQ-1515 Dual Station Pneumatic Heat Press
Built for High-Speed Label & Logo Production

The MEM TQ-1515 Dual Station Pneumatic Heat Press is engineered for professional apparel production environments that demand speed, consistency, and continuous workflow efficiency. Designed specifically for neck labels, left chest logos, sleeve graphics, patches, and small-format DTF transfers, the TQ-1515 delivers industrial-grade performance in a compact production-ready footprint.

Features

✔ Dual Station Continuous Workflow
Increase production efficiency with a dual station shuttle system that allows continuous operation and reduced waiting time between transfers.
✔ Pneumatic Automatic Pressure System
Achieve consistent, repeatable transfer quality with industrial-grade pneumatic pressure control designed for commercial production environments.
✔ Built for Labels & Small Logo Transfers
Optimized for neck labels, left chest logos, sleeve graphics, patches, and other small-format transfer applications.
✔ Industrial-Grade Construction
Heavy-duty steel framework built to withstand demanding daily production use in print shops and apparel decoration facilities.

a. Temperature controller

b. Fuse

c. Power switch

d. Laser positioning system (optional part)

e. Solenoid valve

f. Handle

g. Bottom pressure balancing system

h. Air reducing valve

i. Emergency stop button

j. Heat plate

k. Bottom platen

Air Compressor Required

To ensure stable performance and consistent results, this machine requires an external air compressor (not included).

Recommended Specifications

• Tank Capacity: 4 Gallon (15L) or larger
• Power: 0.4 HP / 300W minimum
• Working Pressure: 87–120 PSI (0.6–0.8 MPa)
• Air Hose: Compatible with 5mm inner diameter air hose (typically 8mm outer diameter)

Use your own compressor or Purchase a Compatible Air Compressor Here

---

Click the image on the right to view the Air Hose Connection Guidey ➡➡➡

Specification
